Newhaven Display TFT Displays

Newhaven Display TFT (Thin-Film Transistor) Displays are active-matrix LCD modules with full RGB color screens. These Newhaven Display screens exhibit bright, vivid colors and can show fast animations, complex graphics, and crisp custom fonts, with the option for resistive or capacitive touchscreens.

Resistive touchscreens offer lower production costs and are ideally suited for use with a stylus. Capacitive touchscreens are highly sensitive to touch, do not require a stylus, and support multi-touch applications.

Applications

  • Audio/video
  • Automotive/transportation
  • Consumer
  • Controls/HVAC/security
  • Industrial/machinery
  • Lottery/casino
  • Medical
  • Military
  • POS/retail/vending
  • Telecom/communication

Videos

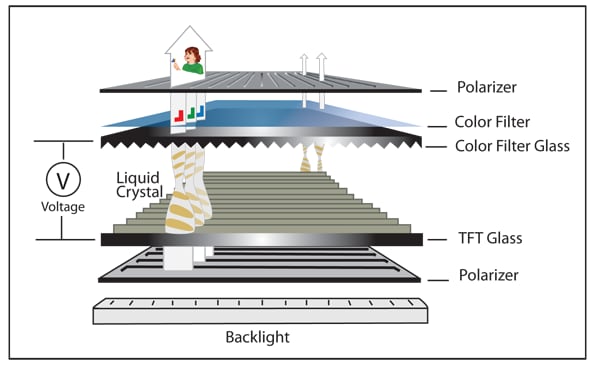

TFT Technology

Newhaven Display TFT Displays

Related Products

Newhaven Display COG & TFT LCD Displays

Wide range of ISO 9001 certified, RoHS compliant displays to suit a variety of applications.

Learn MoreNewhaven Display COG & TFT LCD Displays について View ProductsNewhaven Display COG & TFT LCD Displays に関連

Newhaven Display COG Displays

Feature a display controller IC etched directly into the glass rather than on an external PCB.

Learn MoreNewhaven Display COG Displays について View ProductsNewhaven Display COG Displays に関連

Newhaven Display Mountable TFT LCD Modules

3.5", 4.3", 5", 7" & 10" variants with resolution of 1024 x 600, 320 x 240, 480 x 272, or 800 x 480.

Learn MoreNewhaven Display Mountable TFT LCD Modules について View ProductsNewhaven Display Mountable TFT LCD Modules に関連

Newhaven Display Arduino Breakout Board Modules

Streamline prototyping and integration with 2.4″ and 2.8″ IPS TFT displays.

Learn MoreNewhaven Display Arduino Breakout Board Modules について View ProductsNewhaven Display Arduino Breakout Board Modules に関連
View Results ( 121 ) Page
部品番号 データシート 対角 解像度 ディスプレイ解像度 - ピクセル インタフェース タイプ タッチパネル モジュール サイズ - 幅 x 高さ x 厚み 動作供給電圧
NHD-1.5-240240AF-CSXP-T NHD-1.5-240240AF-CSXP-T データシート 1.5 in 240 x 240 SPI Resistive Touch Panel 35.32 mm x 32.52 mm x 3.45 mm 3.3 V
NHD-1.5-240240AF-CSXP NHD-1.5-240240AF-CSXP データシート 1.5 in 240 x 240 SPI Resistive Touch Panel 35.32 mm x 32.52 mm x 2.25 mm 3.3 V
NHD-7.0-800480EF-ATXL#-T NHD-7.0-800480EF-ATXL#-T データシート 7 in WVGA 800 x 480 24-bit RGB Resistive Touch Panel 165 mm x 104 mm x 4.7 mm 3.3 V
NHD-10.1-1024600BF-ASXP NHD-10.1-1024600BF-ASXP データシート 10.1 in 1024 x 600 24-bit RGB Without Touch Panel 235 mm x 143 mm x 5.2 mm 3.3 V, 12 V
NHD-4.3-HDMI-HR-RSXP NHD-4.3-HDMI-HR-RSXP データシート 4.3 in WVGA 800 x 480 HDMI Without Touch Panel 132.58 mm x 69.9 mm x 24.69 mm 7 V
NHD-7.0-800480FT-CTXL-CTP NHD-7.0-800480FT-CTXL-CTP データシート 7 in WVGA 800 x 480 SPI Capacitive Touch Panel 165 mm x 104 mm x 5.08 mm 3.3 V
NHD-2.4-240320CF-CSXN#-FT NHD-2.4-240320CF-CSXN#-FT データシート 2.4 in QVGA 320 x 240 Parallel Resistive Touch Panel 42.72 mm x 60.26 mm x 3.85 mm 3 V
NHD-4.3-800480FT-CSXP-CTP NHD-4.3-800480FT-CSXP-CTP データシート 4.3 in WVGA 800 x 480 SPI Capacitive Touch Panel 105.5 mm x 67.2 mm x 16.9 mm 3.3 V
NHD-2.8-240320AF-CSXP-FCTP NHD-2.8-240320AF-CSXP-FCTP データシート 2.8 in 240 x 320 Parallel Capacitive Touch Panel 50 mm x 69.2 mm x 3.99 mm 3 V
NHD-3.5-HDMI-HR-RSXP-CTU NHD-3.5-HDMI-HR-RSXP-CTU データシート 3.5 in 640 x 480 HDMI Capacitive Touch Panel 92 mm x 63.9 mm x 17.09 mm 5 V
